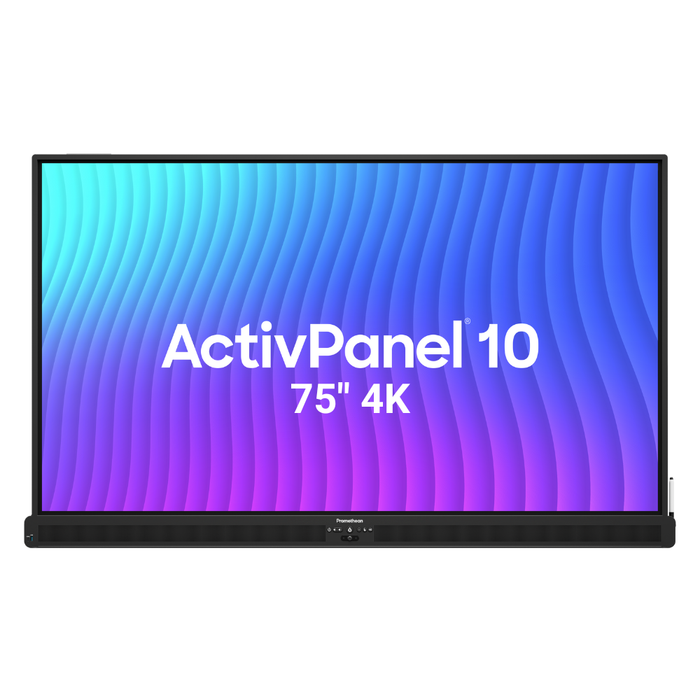

The ActivPanel 10 is the latest generation of interactive displays for digital classrooms. With cutting-edge technology, intuitive operation, and impressive flexibility, it sets new standards for modern teaching. Regardless of your preferred operating system, the ActivPanel 10 adapts to your needs and provides an outstanding user experience.
Tech your way, built to last. It’s that simple.
More flexible, more familiar. This unified solution is designed for you.
User-friendly, made friendlier
• ActivPanel 10 experience supports the most creative and productive you
• Streamline tasks so you can focus on the important work – engaging and inspiring your class.
Promethean ActivSuite
• With our new software, your favourite ActivPanel engagement apps are accessible on your device to use at and away from the panel. Hello, enhanced freedom and flexibility!
High tech, low footprint
• ActivPanel 10 is Energy Star Certified, durably designed, consumes less power2, and comes with less packaging.
Picture-in-picture
• Easily integrate media and play videos in a small window while continuing to use other windows.
DISPLAY
Screen Size and Resolution: 75" 4K; UHD (3840 x 2160 @ 60 Hz)
Backlight Technology: Direct LED Backlight
Screen Type: TFT LCD
Blue Light Reduction: Yes
Bonded Glass: Yes
Aspect Ratio: 16:9
Display Area: 75" 1653 x 931 mm (65.1 x 36.7 in)
Display Colours: 1.07 Billion (10-bit)
LCD Viewing Angle 178°
LCD Response Time: 8 ms
LCD Refresh Rate (Panel): 60 Hz
LED Lifespan: 50,000 hours
Contrast Ratio: 5000:1 Dynamic 1200:1 Static
Typical Max. Brightness: 75": 500 cd/m²
Ambient Light Sensor: Yes
Glass Hardness: 9H (pencil) , 7 (Mohs)
Glass Type: Heat tempered
Glass Thickness: 3.2 mm
Glass Coating: Anti-Glare, Anti-Fingerprint, Anti-Smudge
INTERACTIVITY
Vellum Touch Technology: Yes
Continuous Touch Points: 40Touch
Resolution: 32768 x 32768 px
Touch Response Time: 3 ms
Touch Accuracy: <1 mm
Scan Rate: 500 Hz
Gestures and Edge Swipes: Windows® supported
Unique Pen IDs: 3
Palm Erase: Yes
Palm Rejection: Yes
Writing-hand Palm Rejection: Yes
Pens Included: Yes 2 x Passive battery-less pens
Pen Holder: Integrated full-length pen tray and side pockets
Pen Tip Diameter: 3 mm
Pen Eraser Diameter: 7 mm
Integrated Active Pen Charging: Active Pen Ready
Touch-enabled PiP: Yes
Compatibility: Windows® 10 and 11; macOS® Ventura 13 and Sonoma 14; Linux® Ubuntu 22.04 to 24.04 LTS; ChromeOS™; Android 14
AUDIO
Dual Front-facing Speakers: 2 x 20 W
CONNECTIVITY
OPS Slot: 1
HDMI In (Rear): 2 x 2.1
Display Port: 1 x 1.4
USB-A (Rear): 3 x 3.2 Gen 1
USB-A (Rear): 1 x 2.0
USB-B (Touch, Rear): 3 x 3.0
USB-C (Rear): 1 x 3.2 Gen 1 (100 W Power Delivery)
USB-A (Front): 1 x 3.2 Gen 1
USB-C (Front): 1 x 3.2 Gen 1
HDMI Out: 1 x 2.0
LAN In (RJ45): 10/100/1000
LAN Out (RJ45): 10/100/1000
Wake-on-LAN: Yes
S/PDIF: Optical
Audio Out (3.5 mm): 1
Serial (RS232): 1
COMPUTING
NO built-in Operating System. Secure by Design
Requires external PC/Notebok or insert OPS to run any software or application.
Compatible Promethean Devices : OPS-A, OPS-M and Chromebox
WARRANTY
DIMENSIONS ETC
Panel Dimensions: 1705 x 107 x 1056 mm
Panel Weight: 50.7kg
Wall Mount Dimensions: 800 x 400mm
Power Consumption (Standby): <= 0.5 W
Ultra-quiet Fanless Design: Yes
Max. Energy Star Reported Luminance 450 cd/m²: 147 W
