General

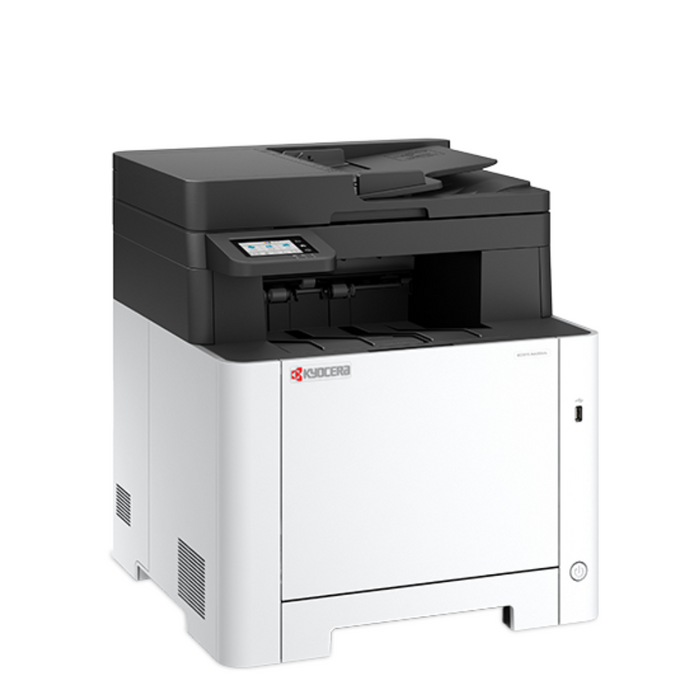

KYOCERA ECOSYS Laser Colour Multifunctional
Operation panel
Colour 2.7 inch TFT
Type
Desktop
Engine speed
Up to 21 A4 pages per minute simplex (single-sided),
Up to 11 A4 pages per minute duplex (both sides)
Resolution
1200 x 1200 dpi (print), 600 x 600 dpi (scan/copy)
Recommended Print Volume
Average 600 images per month
Maximum Life
100,000 pages or 5 years
Warm up time
Approx. 32 seconds or less
Time to first print
Approx. 11/12.5 seconds or less in BW/colour
Time to first copy
Approx. 12/14 seconds or less in BW/colour
CPU
ARM Cortex-A53 single core 1.0GHz
Memory
Standard 1GB
Standard interface
USB 2.0 (Hi-Speed), Network (10BASE-T/100BASE-TX/1000BASE-T), WLAN (802.11a/b/g/n/ac, Wi-Fi Direct, 2.4/5 GHz)2, USB host for USB flash
memory, IC Card Reader, slot for optional SD/SDHC card
Integrated Accounting
20 department codes
PAPER HANDLING
Input capacity
50-sheet multi-purpose tray at 80 g/m²; 60–220 g/m²; A4, A5, A6, B5, B6, Letter, Legal, Custom (70 x 148 mm–216 x 356 mm) 250-sheet universal cassette at 80 g/m²; 60–163 g/m²; A4, A5, A6, B5, B6, Letter, Legal, Custom (105 x 148–216 x 356 mm)
Max. input capacity with options
550 sheets at 80 g/m²
Duplex unit
Duplex as standard: Double-sided printing: 60 – 120 g/m²; A4, A5, B5, Letter, Legal
Output capacity
150 sheets face-down with paper full detection
Document processor
50-sheet, 60-90 g/m², A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 to 216 x 356 mm)
PRINT
Processor
ARM Cortex-A53 single core 1.0GHz
Fonts
94 scalable fonts for PCL/PostScript, 8 fonts for Windows Vista, 1 bitmap font, 45 barcodes (e.g. EAN8, EAN13, EAN128) with automatic generation of checksums as well as support of two-dimensional barcodes PDF-417 under PRESCRIBE (PCL and other barcodes available as an option)
Applicable OS (Print)
All current Windows operating systems, MAC OS X Version 10.8 or higher, Unix, Linux as well as other operating systems on request
COPY
Continuous copy
1 – 999
Zoom range
25 - 400 % in 1% steps
Preset magnification ratios
7 Reductions/5 Enlargements
Image adjustments
Text + Photo, Photo, Text, Map, Printed document
Digital features
Auto Colour Mode, Scan-once-copy-many, electronic sort, 2in1, 4in1, ID-card copy, priority print, program, continuous scan, auto cassette change, copy density control
SCAN
Scan functionalities
Scan-to-e-mail (SMTP), Scan-to-FTP (FTP over SSL), Scan-to-SMB, Scan to USB Host, TWAIN scan (USB, network), WSD (WIA) scan (USB, network)
Scan speed
27 ipm (300 dpi, A4, b/w), 22 ipm (300 dpi, A4, colour)
Scan features
Integrated address book, Active directory support, encrypted data transfer, Blank sheet skip
Scan resolution
600, 400, 300, 200 dpi (256 grey scales per colour)
Max. scan size
A4 / legal
Scan File type
TIFF, PDF, PDF/A , high compression PDF, encrypted PDF, JPEG, XPS
Original recognition
Text + Photo, Photo, Text, Light Text, Text (for OCR)
FAX
Compatibility
ITU-T Super G3
Modem speed
Max. 33.6 kbps
Scanning speed
2 seconds /sheet or less
Scanning density
Normal: 200 x 100 dpi,Fine: 200 x 200 dpi,Superfine: 200 x 400 dpi, Ultrafine: 400 x 400 dpi
Fax Max. Original size
A4 / legal
Fax features
Network fax, duplex transmission and reception,polling transmission and reception
DIMENSIONS
Dimensions W x D x H
410 x 416 x 457mm
Weight
Approx. 33kg
Power Consumption
Printing/Copying: 345 W
Ready mode: 41 W
Sleep-mode: 0.4 W
Noise
Printing/Copying: 48 dB (A) LpA
Quiet mode: 44 dB (A) LpA
Stand-by: 30 dB(A)
Safety Standards
This unit is manufactured according to ISO 9001 quality standard and ISO 14001 environmental standard
