General

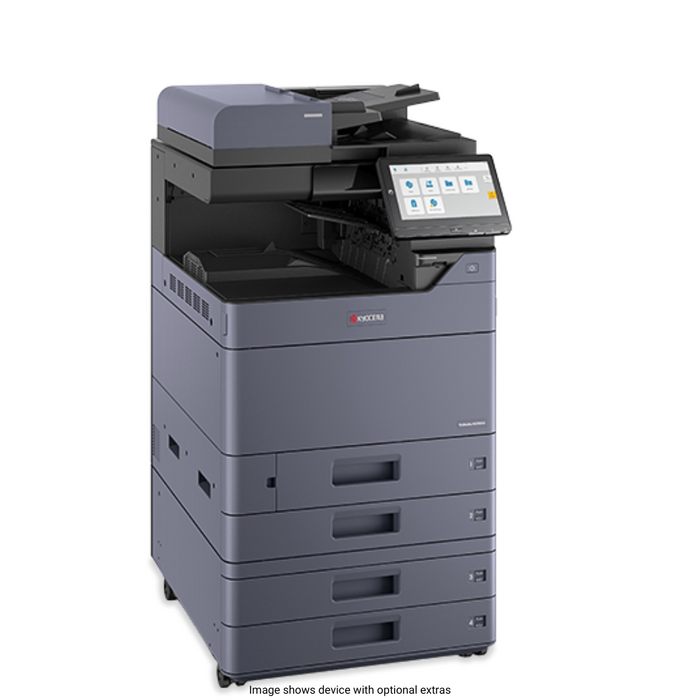

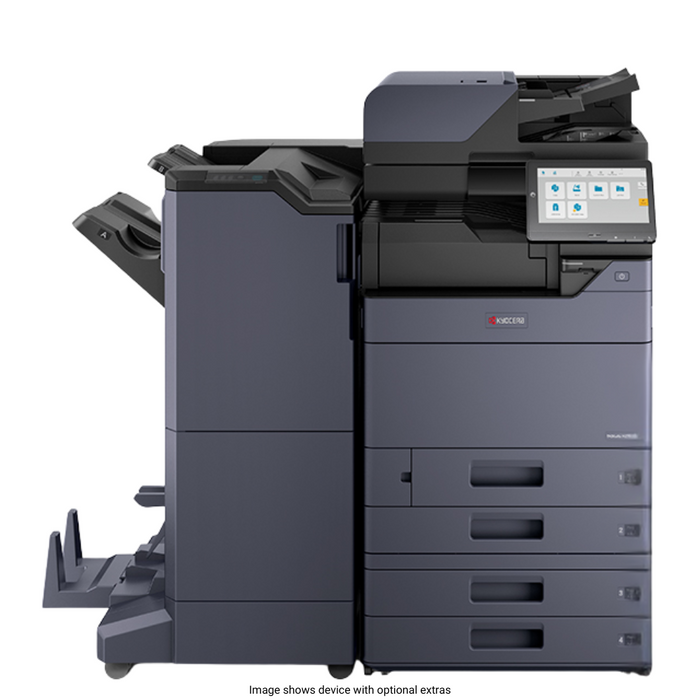

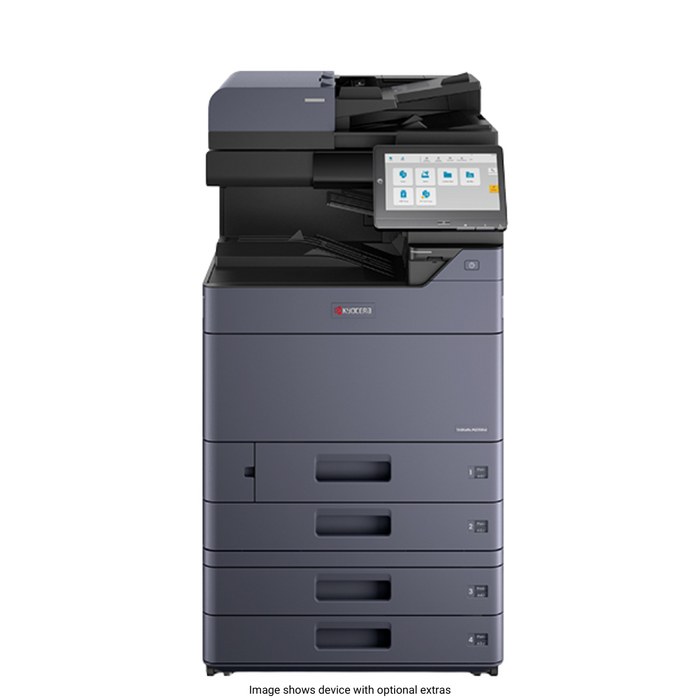

KYOCERA TASKalfa Laser Colour Multifunctional HyPAS™ solution platform
Operation panel
256.5 mm (10.1 inch) full-colour touch panel display, speaker for job notification, 15° - 90° swivel mounted
Engine speed
Up to 40/20 pages A4/A3 per minute, Duplex print/copy speed: 40 pages A4 per minute
Resolution
1200dpi x 1200dpi (print), 2 bit, 4800dpi equivalent x 1200dpi (print), 600 × 600 dpi (scan/copy)
Warm up time
17 seconds or less
Time to first print
5.1/6.5 seconds or less in Mono/Colour
Time to first copy
7.1/7.4 seconds or less in Mono/Colour (DP),approx. 4.5/5.9 or less in Mono/Colour (Platen)
CPU
ARM A53 (Quad Core) 1.6GHz
Memory
Standard 4GB, 124GB SSD, Optional 320GB or 1TB HDD
Standard interface
USB 3.0 (Super-Speed USB), 4 x USB Host Interface, Gigabit Ethernet (10BaseT/100BaseTX/1000BaseT, IPv6,IPv4, IPSec, 802.3az support), optional Wi-Fi (IEEE 802.11a/b/g/n/ac), 2 eKUIO slots for optional internal print server or for optional fax system, slot for optional Wireless LAN, Slot for optional SD Card, NFC tag
PAPER HANDLING
Input capacity
Multi-purpose tray: 150 sheets 52 - 300g/m2, (Banner 136–163 g/m2 ) A6R - SRA3 (320 x 450 mm), Custom (98 x 148 to 320 x 1,220 mm), Banner max. 304.8 x 1,220 mm Standard universal paper cassette: 2 x 500 sheet 52 - 300g/m2 Upper cassette A6R up to A4R, lower cassette A6R up to SRA3
Duplex unit
Standard 60 to 256 g/m2 SRA3 to A6R
Max. input capacity with options
7,150 sheets A4
Max. output capacity
Standard 500 sheets face-down, Max. 5.000 sheets
PRINT
Processor
ARM A53 (Quad Core) 1.6GHz
Features
Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, quick copy, proof and hold, private print, job storage and job management functionality, Super Resolution
Fonts
93 outline fonts (PCL), 136 fonts (KPDL 3), 4 fonts (Calibri), 4 fonts (Cambria), 1 Bitmap font, 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)
Applicable OS
All current Windows operating systems, Mac OS X Version 10.9 or higher, UNIX, LINUX, Chrome OS and as well as other operating systems on request.
COPY
Max. original size
A3, Ledger
Zoom range
25 - 400 % in 1% steps
Image adjustments
Text + Photo, Photo, Text, Diagram/Map
Continuous copy
1 – 9,999
Preset magnification ratios
5 Reductions/5 Enlargements
Digital copy features
Scan-once-copy-many, electronic sort, 2in1, 4in1, image repeat, page numbering, cover mode, booklet copy, interrupt copy, form overlay, margin shift, auto cassette change, skip blank page, ID copy
SCAN
Scan functionalities
Scan-to-E-Mail, Scan-to-FTP, Scan-to-SMB, Scan-to-USB-Host, Scan-to-Box, TWAIN (Network), WSD(WIA)Scan, DFS Scan, DSM Scan, Mopria Scan
Scan resolution
600dpi x 600dpi , 400dpi x 400dpi , 200dpi x 400dpi , 300dpi x 300dpi , 200dpi x 200dpi , 200dpi x 100dpi, 1200dpi x 1200dpi(TWAIN driver, WIA driver only)
File type
TIFF, PDF, PDF/A, JPEG, Open XPS, Encrypted PDF, High compression PDF, PDF/A-1a/b, PDF/A-2a/b/u, Searchable PDF (Option), MS Office file (Option)
Scan speed
Up to 200 images per minute in black and white and colour (A4, 300 dpi, duplex, with DP-7160/DP-7170)
Max. scan size
Max. A3, banners up to 1,900 mm with optional document feeder
Original recognition
Text, photo, text + photo, Light Text / Fine Line, optimised for OCR
FAX
Compatibility
ITU-T Super G3
Scanning speed
2.0 seconds or less
Scanning density
Normal: 200 x 100 dpi, Fine: 200 x 200 dpi, Superfine: 200 x 400 dpi, Ultrafine: 400 x 400 dpi, , 600 x 600 dpi, Halftone: 256 greyscales
Fax features
Network faxing, rotate transmission, rotate reception, encrypted transmission and reception, duplex fax reception, memory reception, mailbox, remote diagnostics, polling transmission and reception, broadcast, Optional Internet-fax, dual fax with second Fax System
Modem speed
Max. 33.6 kbps
Transmission speed
Max. 3 seconds (JBIG)
Max. original size
Max. A3, Ledger, Banner: up to 1,600mm
DIMENSIONS
Weight
Main unit approx. 90 kg
Power Consumption
Print/Copy: 660 W
Ready mode: 45 W
Sleep mode: 0.5 W
Noise
Copying/Printing Mode in Colour: 50.7/51.3 dB(A) L pA
Stand-by: 30.9dB(A) L pA
Safety Standards
This unit is manufactured according to ISO 9001 quality standard and ISO 14001 environmental standard
